Backstory of my solar ebike

A brief history of my solar ebike…

IMG_4547
In 2006, I completed a 2 month, 2000 mile (3200 km) fully loaded bike tour of Italy.
bag_backpack_orange_large

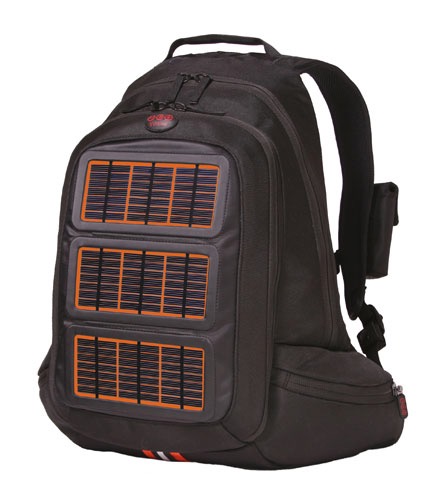

I had a solar backpack to charge my phone and batteries for lights.

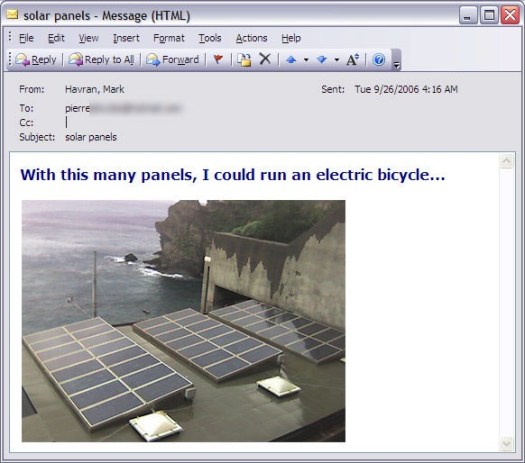

cinque-terre-pv-panels
When I passed through Cinque Terre, I noticed these solar panels on the roof of a train station and had an idea.

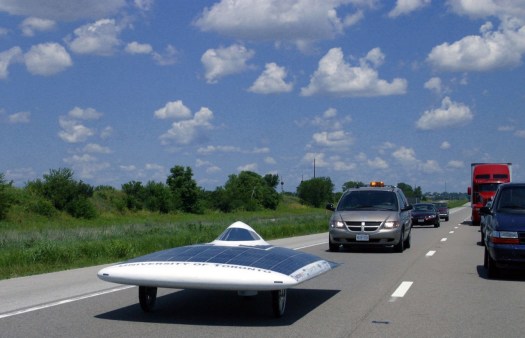

071303.Interstate55.1
When I returned to California, I started researching solar vehicles and found a lot of this.

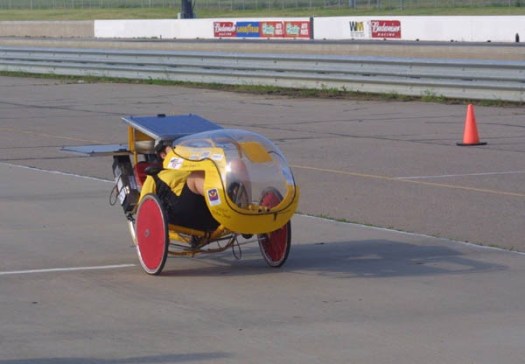

pocoloco6
And a little bit of this.
solar-trike-1-animation
So I started sketching out ideas.

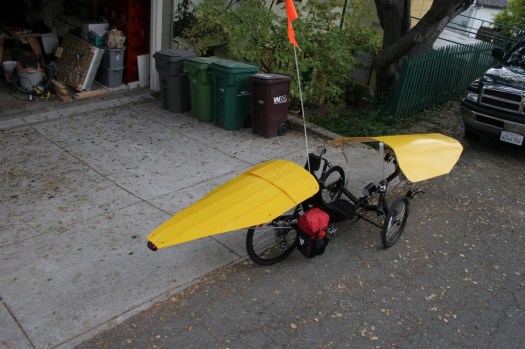

IMG_6031
I got a tadpole trike and started experimenting to get an idea of what was practical.

My first attempt at building a custom solar panel was instructive but the cells all cracked during the lamination process and the panel output was too low to be usable.

IMG_6180
It looked kind of cool, though.
IMG_0012

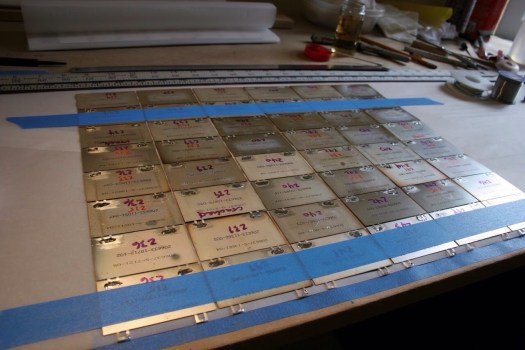

I found some off-spec satellite-grade dual junction gallium arsenide cells on eBay. The seller was in Mountain View, California so I like to think these were leftovers from a NASA project.
IMG_0013

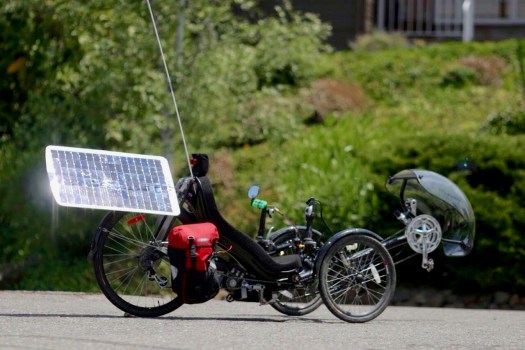

In 2008, I got my first taste of success with this 50 watt panel.
IMG_7088

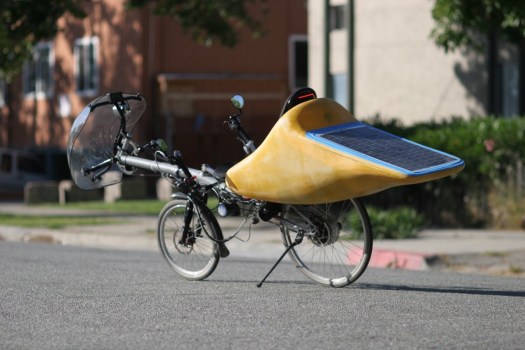

I upgraded the bike to this 2-wheeled model with suspension and higher seat height for commuting 20 miles a day in traffic. The tail-box fairing was a bit awkward.
IMG_0016

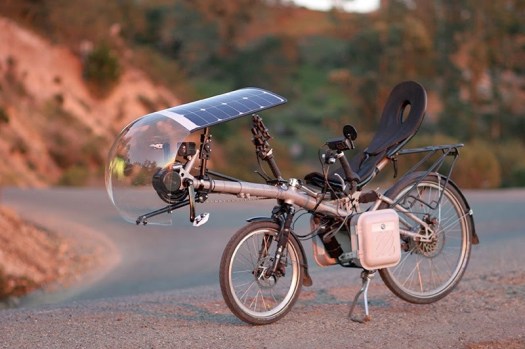

Later, I experimented with a curved front fairing design using a commercially made semi-flexible panel.
IMG_2355

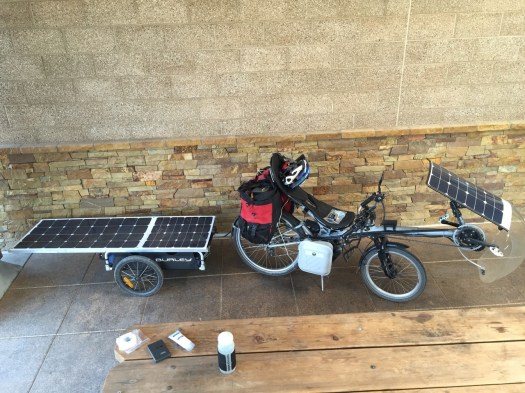

After a dozen or so overnight camping trips, I knew I needed more solar to get the daily range I was looking for. I didn’t want the high center of gravity and cross wind issues an overhead solar panel would bring so I started experimenting with a trailer solution.
IMG_3802

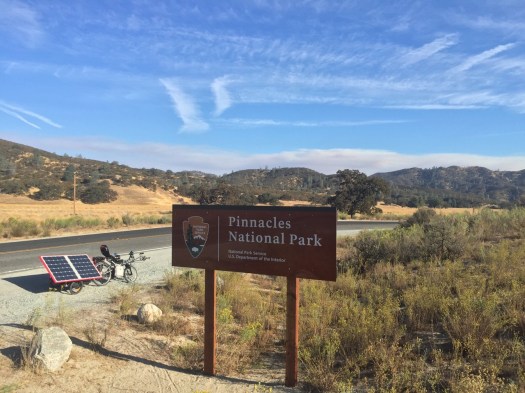

Thanks to an extra battery and a manually operated panel tilt mount, I set a personal single day distance record of 144 miles (232 km) by traveling from Oakland to Pinnacles National Park.
IMG_4779

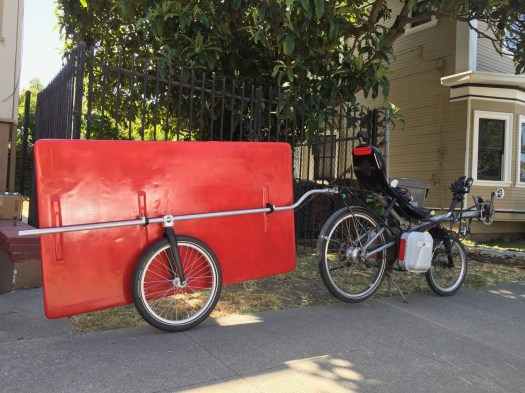

I set out to improve on the trailer design by making a one-wheeled trailer from scratch. This first attempt used undersized aluminum tubing and connected to the rear bike rack, causing it to flex like a wet noodle while riding. Not good.
IMG_5926
A larger diameter tube with carbon fiber reinforcement fixed the flexing problem. An elastomer suspension smoothed out the rough spots without adding too much weight. And a linear actuator added motorized tilting while riding to get more energy.

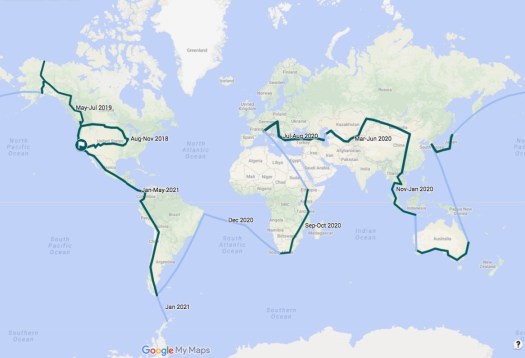

Screen Shot 2018-04-18 at 10.25.52 PM
A few more tweaks and she’ll be ready for the ultimate test ride.
